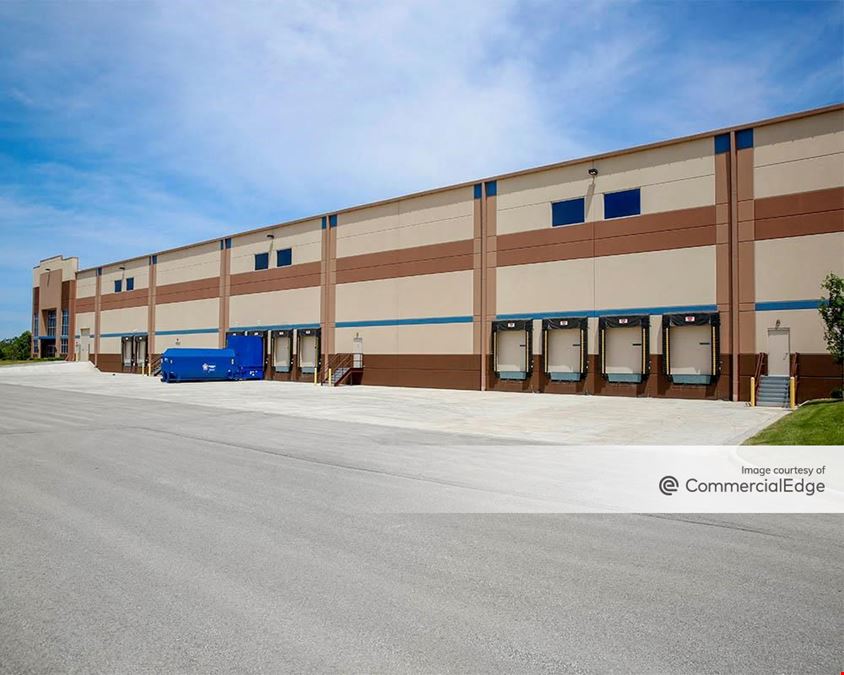

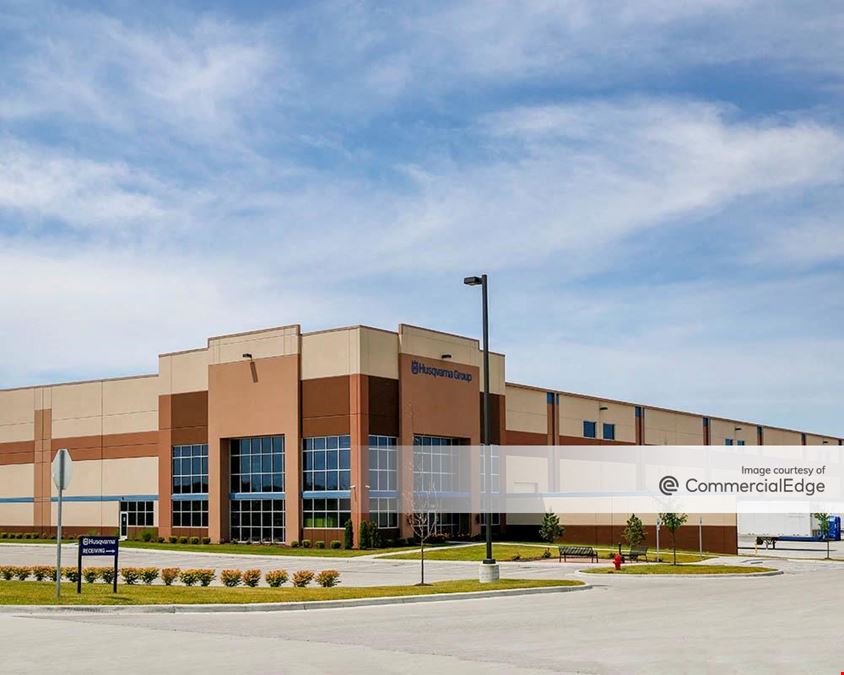

Lenexa Logistics Centre - Building 7

Size: 401,198 SF (926.5’ x 432’) sitting on 21.552+ acres of land

Bay Size: 54.5’ x 65’

Ceiling Height: 36’ minimum

HVAC: Heating provided by 4 roof-mounted gas-fired make-up air units (initial heat)

Lighting Type: The building shall be lighted with 6-Lamp T-5 HO fixtures with motion sensors to an

average of 25FC. The lights will be breaker controlled at the house panel.

Roofing: 45 mil TPO mechanically fastened roof system with R-20 insulation

Electrical Service: 3,000amps. Husqvarna (1,200amps); Sprint (800amps); Shell (200amps); 800amps

remaining for the available space.

Loading:

• Forty (40) 9’x10’ dock doors

• Forty (40) dock pits with 45,000 pound mechanical levelers, bumpers, seals, lights,

wheel chocks and top/bottom/side weather seals

• Four (4) 12’x14’ drive-in doors

• All dock-high doors will be insulated, vision panels and exterior numbers

• Exterior lighting on building and poles in loading and parking areas

• All existing dock pits are equipped with 45,000 pound mechanical dock levelers,

dock seals, and dock lights with receptacles

Truck Court: South side is 135’ without trailer parking

North side is 135’ up to 190’ with trailer parking

Parking: 349 car parking and 77 trailer parks, 61 on the north side and 16 on south side

Zoning: BP-2 Planned Manufacturing

Utilities:

Natural Gas: Atmos Energy

Water: WaterOne

Electricity: Evergy

Sewer: Johnson County Wastewater

Heat: The available space has two (2) 10,000 CFM, 189,523 BTU Make-Up Air Units for

heating. One each on the north and south sides of the space

Net Charges:

(2024 Estimates)

CAM: $0.53

INS: $0.09

RE TAXES*: $1.06

Total: $1.68
